Contact |
System |
Routes to |
Used With |
Application |
---|---|---|---|---|
+B |
Battery |
EFI Main Relay |
E1, FP, W |
|
VF1 |
TCCS Check Connector |
TCCS Pin: VF |
E1 |
|
VF2 |
Not Used |
|
|
Not Used in the MKIII Supra |
CC0 |
|
|
|
Not Used in the MKIII Supra |
TE1 (aka T1) |
TCCS TE1 |
TCCS TE1 |
E1 |
CEL/MIL Diagnosis System (Error Codes), (alt. link); Timing Adjustment |
TE2 |
TCCS Test Mode |
|
Not Used in the MKIII Supra |
|
FP |
Fuel Pump Bypass |
Fuel Pump after Relay and Resistor |
B+ |
|
W |
Check Engine/Malfunction Indicator Lamp |
TCCS Pin: W, Comb. Meter MIL |
B+ |
Not Used in the MKIII Supra |
E1 |
TCCS Ground |
|
VF1, TE1, OX1, OX2, TS, TT, IG- |
Used in many test proceedures. |
IG- |
Igniter |
Igniter IG-, Tachometer |
Tachometer, E1 |
|
OX1 |
TCCS Lambda (O2) Sensor |
TCCS Pin: OX |
E1 |
|
OX2 |
TCCS Lambda (O2) Sensor (Cali. 7M-GE Only) |
TCCS Pin: OX2 (Cali. Only) |
E1 |
|
TS |
TEMS |
TEMS Comp. Pin: HCK |
E1 |
|
TT |
ECT (Automatic Transmission) |
ECT Pin: DG |
IG-, E1 |
|
CC2 |
|
|
|
Not Used in the MKIII Supra |
TC |
|
|
|
Not Used in the MKIII Supra |
AB |
|
|
|
Not Used in the MKIII Supra |

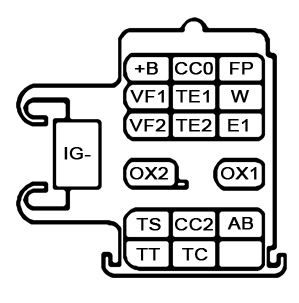

HINT: Go to the last page of each section of the TEWD and look for the illustration above among the connector diagrams.
NOTE: Connectors Marked in RED may not be employed in this vehicle.
E1 is ,more specifically,
the TCCS' Computer ground (BTW, E2 is the TCCS' sensor ground). +B
and +B1 are both 12v supplies from the EFI main relay. VF1 represents
the TCCS' VF
diagnostic signal (this operates in 3 different modes), FP is a
test feed
to the fuel pump (bypasses protection circuitry and the relay and
resistor pack)..... yada, yada, yoda....
How you use the
diagnostic block varies from one circuit to the next. The TSRM and
TEWD cover when and how to test each circuit.
